Home > Products > Rubber Liner Slurry Pumps > ZMR Light Design Mining Slurry Pumps

Rubber Liner Slurry Pumps

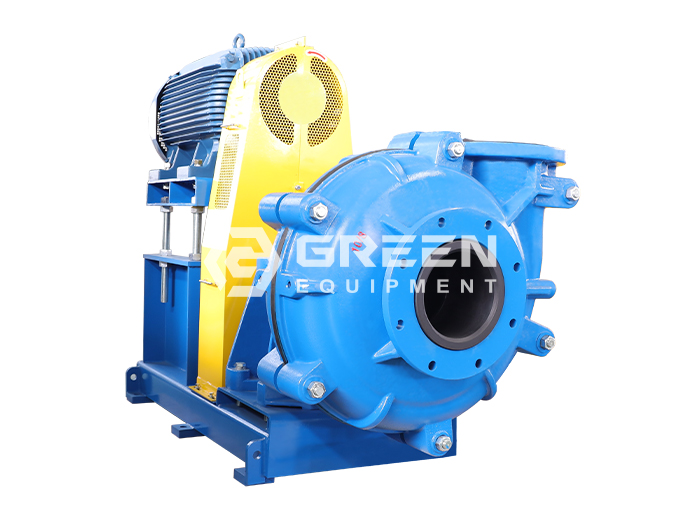

ZMR Light Design Mining Slurry Pumps

Inlet&Discharge size: 10x8inch

Capacity Range: 540-1440 m3/h

Head Range: 10-50m

Speed Range: 500-900rpm

Max Power : 120kw

Solid handling: 76mm


  • Products detail

ZMR rubber liner slurry pump is ideal solution for convey water and solid mixture medium. Suitable for conveying fine particles and corrosive liquids that contain suspended particles. The ZMR series slurry pumps have the features on replaceable wear-resistant metal liners. Basing on medium condition can choose different materials of Natural rubber, Nitrile rubber,Polyurethane etc.

Features

1. Horizontal, cantilevered, centrifugal, single stage slurry pump design.

2. International brand replaced pump, 100% same technique design, structure, and performance.

3. Thick rubber and polyurethane pump lining are available and can be replaced with each other.

4. Double casing, liner insert can be replaced by metal liner or rubber one.

5. Different connection methods(DC, CR, ZVZ, CV) with motor to satisfy different requirements.

6. Discharge can be adjusted by 8 directions every 45 degree.

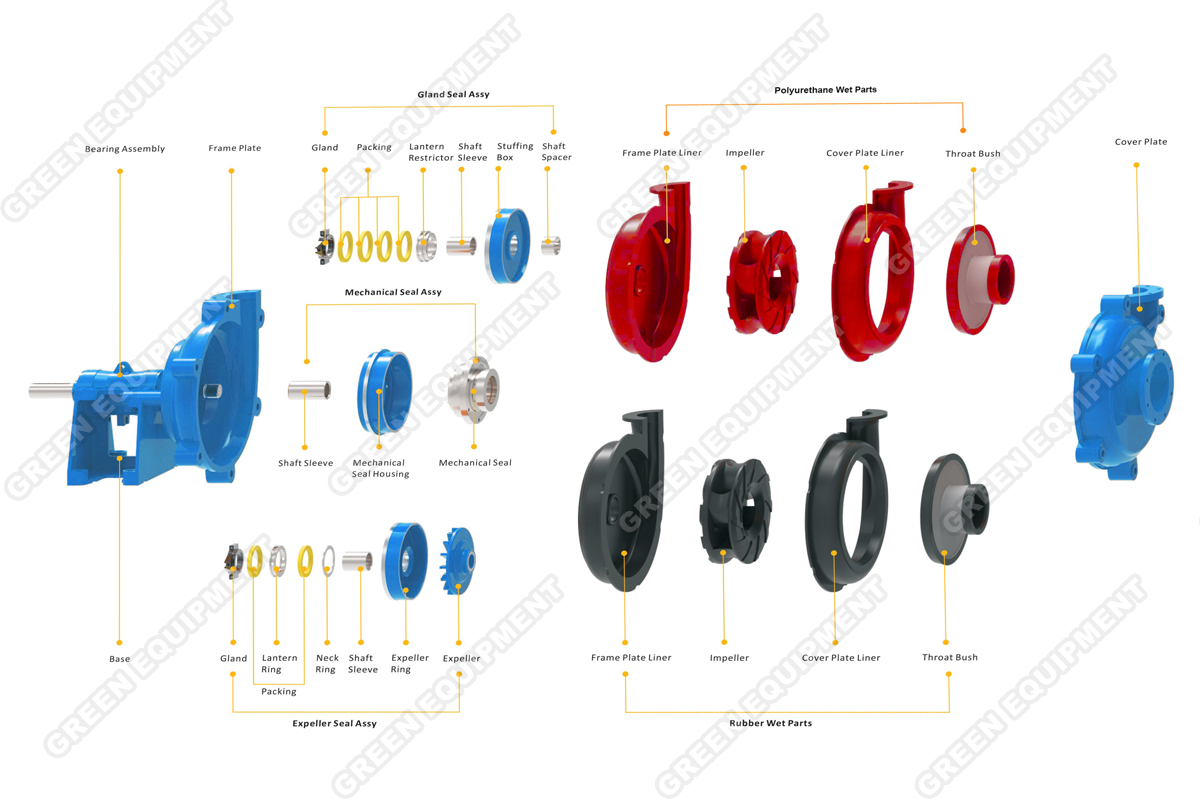

Structure

The ZMR series slurry pump has a double casing structure with interchangeable metal or rubber liner. There are two types of shaft seals, expeller seal and packing seal. Selection according to working conditions.


ZMR Corrosion Resistant Rubber Liner Slurry Pump


Pump Mainly Parts & Material List
Part nameMaterialPart nameMaterial
ShaftHigh tense steelExpeller ringNatural rubber
Shaft sleeve3Cr13 or as designedCover plate linerNatural rubber
Cover plateDuctile ironImpellerNatural rubber
Frame plateDuctile ironFrame plate linerNatural rubber
Expeller27% Chrome alloyThroatbushNatural rubber
Gland/Split glandCast ironLabyrinth coverColor zinc plated


Applications

It is applied to handle corrosive and acidic slurries in mining, coal, metallurgy, electric power, building materials, sand washing and other industries.


● Copper Concentration Plant● Potash Fertilizer Plant● Chemical Industry
● Gold Mine Concentration Plant● Mineral Flotation Processing Plants● Mining concentration plant
● Molybdenum Concentration Plant● Alumina Industry● Ash-handling system of power plant
● Coal Washer● Power Plant● Building Material Industry

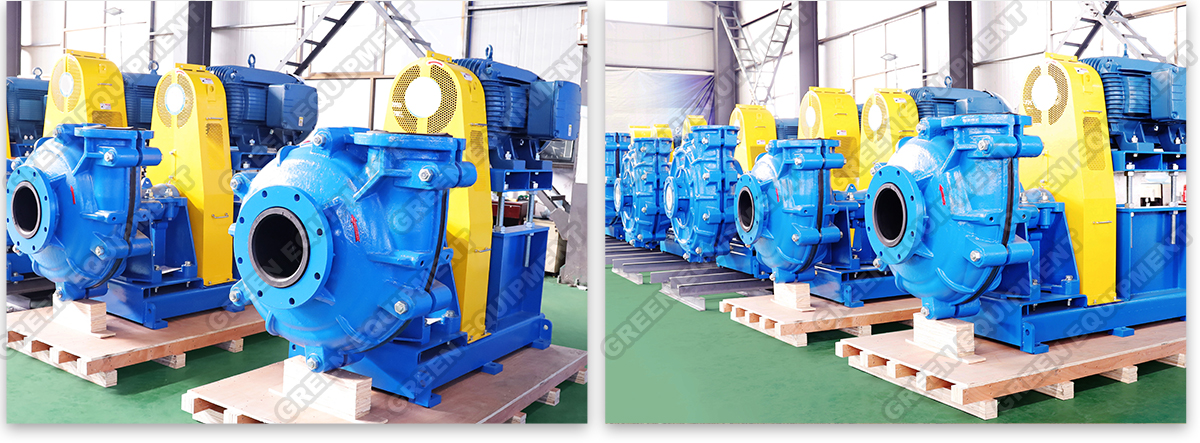

Pump Display

ZMR Light Design Mining Slurry Pumps
